AWS Lambda (Node) - Upstash Documentation

Setting up a Lambda

The AWS CDK is the most convenient way to create a new project on AWS Lambda. For example, it lets you directly define integrations such as APIGateway, a tool to make our lambda publicly available as an API, in your code.

Terminal

mkdir my-app
cd my-app
cdk init app -l typescript
npm i esbuild @upstash/qstash
mkdir lambda
touch lambda/index.ts

Webhook verification

Using the SDK (recommended)

Edit lambda/index.ts, the file containing our core lambda logic:

lambda/index.ts

import { Receiver } from "@upstash/qstash"
import type { APIGatewayProxyEvent, APIGatewayProxyResult } from "aws-lambda"

const receiver = new Receiver({
  currentSigningKey: process.env.QSTASH_CURRENT_SIGNING_KEY ?? "",
  nextSigningKey: process.env.QSTASH_NEXT_SIGNING_KEY ?? "",
})

export const handler = async (
  event: APIGatewayProxyEvent
): Promise<APIGatewayProxyResult> => {
  const signature = event.headers["upstash-signature"]
  const lambdaFunctionUrl = `https://${event.requestContext.domainName}`

  if (!signature) {
    return {
      statusCode: 401,
      body: JSON.stringify({ message: "Missing signature" }),
    }
  }

  try {
    await receiver.verify({
      signature: signature,
      body: event.body ?? "",
      url: lambdaFunctionUrl,
    })
  } catch (err) {
    return {
      statusCode: 401,
      body: JSON.stringify({ message: "Invalid signature" }),
    }
  }

  // Request is valid, perform business logic

  return {
    statusCode: 200,
    body: JSON.stringify({ message: "Request processed successfully" }),
  }
}

We’ll set the QSTASH_CURRENT_SIGNING_KEY and QSTASH_NEXT_SIGNING_KEY environment variables together when deploying our Lambda.

Manual Verification

In this section, we’ll manually verify our incoming QStash requests without additional packages. Also see our manual verification example.

Implement the handler function

lambda/index.ts

import type { APIGatewayEvent, APIGatewayProxyResult } from "aws-lambda"
import { createHash, createHmac } from "node:crypto"

export const handler = async (
  event: APIGatewayEvent,
): Promise<APIGatewayProxyResult> => {
  const signature = event.headers["upstash-signature"] ?? ""
  const currentSigningKey = process.env.QSTASH_CURRENT_SIGNING_KEY ?? ""
  const nextSigningKey = process.env.QSTASH_NEXT_SIGNING_KEY ?? ""

  const url = `https://${event.requestContext.domainName}`

  try {
    // Try to verify the signature with the current signing key and if that fails, try the next signing key
    // This allows you to roll your signing keys once without downtime
    await verify(signature, currentSigningKey, event.body, url).catch((err) => {
      console.error(
        `Failed to verify signature with current signing key: ${err}`
      )

      return verify(signature, nextSigningKey, event.body, url)
    })
  } catch (err) {
    const message = err instanceof Error ? err.toString() : err

    return {
      statusCode: 400,
      body: JSON.stringify({ error: message }),
    }
  }

  // Add your business logic here

  return {
    statusCode: 200,
    body: JSON.stringify({ message: "Request processed successfully" }),
  }
}

Implement the verify function:

lambda/index.ts

/**
 * @param jwt - The content of the `upstash-signature` header (JWT)
 * @param signingKey - The signing key to use to verify the signature (Get it from Upstash Console)
 * @param body - The raw body of the request
 * @param url - The public URL of the lambda function
 */
async function verify(
  jwt: string,
  signingKey: string,
  body: string | null,
  url: string
): Promise<void> {
  const split = jwt.split(".")
  if (split.length != 3) {
    throw new Error("Invalid JWT")
  }
  const [header, payload, signature] = split

  if (
    signature !=
    createHmac("sha256", signingKey)
      .update(`${header}.${payload}`)
      .digest("base64url")
  ) {
    throw new Error("Invalid JWT signature")
  }

  // JWT is verified, start looking at payload claims
  const p: {
    sub: string
    iss: string
    exp: number
    nbf: number
    body: string
  } = JSON.parse(Buffer.from(payload, "base64url").toString())

  if (p.iss !== "Upstash") {
    throw new Error(`invalid issuer: ${p.iss}, expected "Upstash"`)
  }
  if (p.sub !== url) {
    throw new Error(`invalid subject: ${p.sub}, expected "${url}"`)
  }

  const now = Math.floor(Date.now() / 1000)
  if (now > p.exp) {
    throw new Error("token has expired")
  }
  if (now < p.nbf) {
    throw new Error("token is not yet valid")
  }

  if (body != null) {
    if (
      p.body.replace(/=+$/, "") !=
      createHash("sha256").update(body).digest("base64url")
    ) {
      throw new Error("body hash does not match")
    }
  }
}

You can find the complete example here.

Deploying a Lambda

Using the AWS CDK (recommended)

Because we used the AWS CDK to initialize our project, deployment is straightforward. Edit the lib/<your-stack-name>.ts file the CDK created when bootstrapping the project. For example, if our lambda webhook does video processing, it could look like this:

lib/<your-stack-name>.ts

import * as cdk from "aws-cdk-lib";
import * as lambda from "aws-cdk-lib/aws-lambda";
import { NodejsFunction } from "aws-cdk-lib/aws-lambda-nodejs";
import { Construct } from "constructs";
import path from "path";
import * as apigateway from 'aws-cdk-lib/aws-apigateway';

export class VideoProcessingStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props)

    // Create the Lambda function
    const videoProcessingLambda = new NodejsFunction(this, 'VideoProcessingLambda', {
      runtime: lambda.Runtime.NODEJS_20_X,
      handler: 'handler',
      entry: path.join(__dirname, '../lambda/index.ts'),
    });

    // Create the API Gateway
    const api = new apigateway.RestApi(this, 'VideoProcessingApi', {
      restApiName: 'Video Processing Service',
      description: 'This service handles video processing.',
      defaultMethodOptions: {
        authorizationType: apigateway.AuthorizationType.NONE,
      },
    });

    api.root.addMethod('POST', new apigateway.LambdaIntegration(videoProcessingLambda));
  }
}

Every time we now run the following deployment command in our terminal, our changes are going to be deployed right to a publicly available API, authorized by our QStash webhook logic from before.

Terminal

cdk deploy

You may be prompted to confirm the necessary AWS permissions during this process, for example allowing APIGateway to invoke your lambda function.

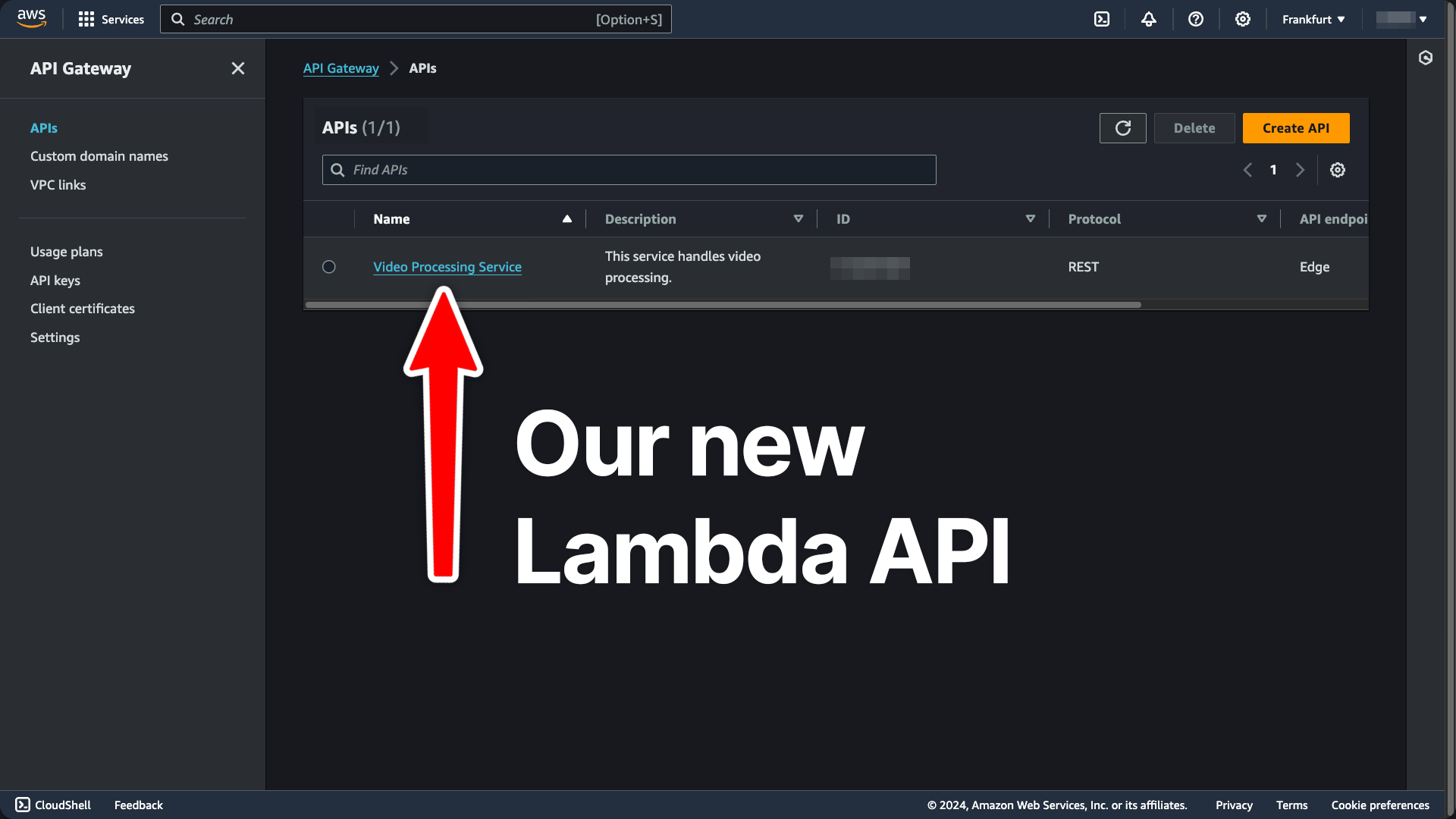

Once your code has been deployed to Lambda, you’ll receive a live URL to your endpoint via the CLI and can see the new APIGateway connection in your AWS dashboard:

The URL you use to invoke your function typically follows this format, especially if you follow the same stack configuration as shown above:

https://<API-GATEWAY-ID>.execute-api.<API-REGION>.amazonaws.com/prod/

To provide our QSTASH_CURRENT_SIGNING_KEY and QSTASH_NEXT_SIGNING_KEY environment variables, navigate to your QStash dashboard:

and make these two variables available to your Lambda in your function configuration:

Tada, we just deployed a live Lambda with the AWS CDK! 🎉

Manual Deployment

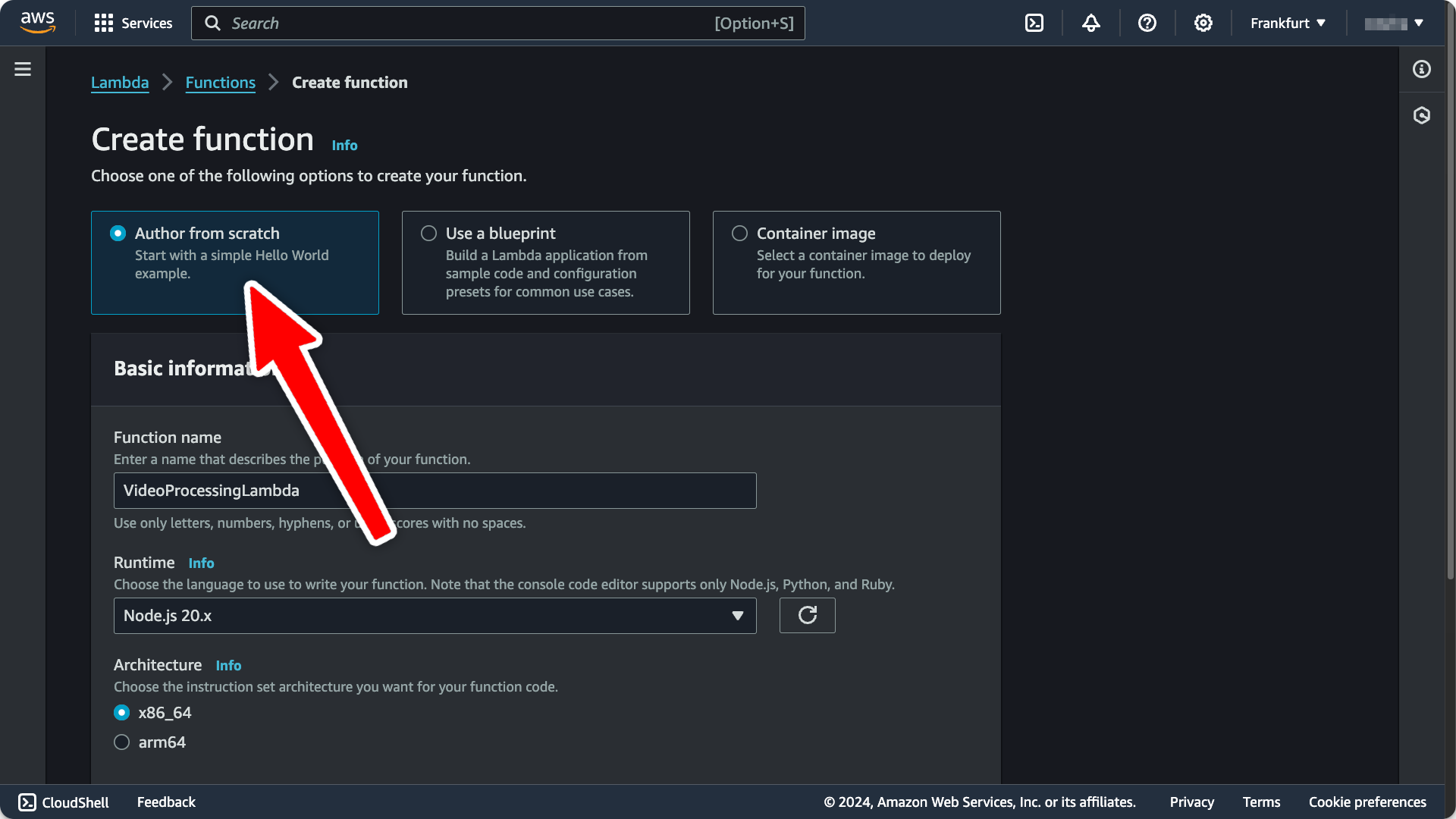

Create a new Lambda function by going to the AWS dashboard for your desired lambda region. Give your new function a name and select Node.js 20.x as runtime, then create the function.

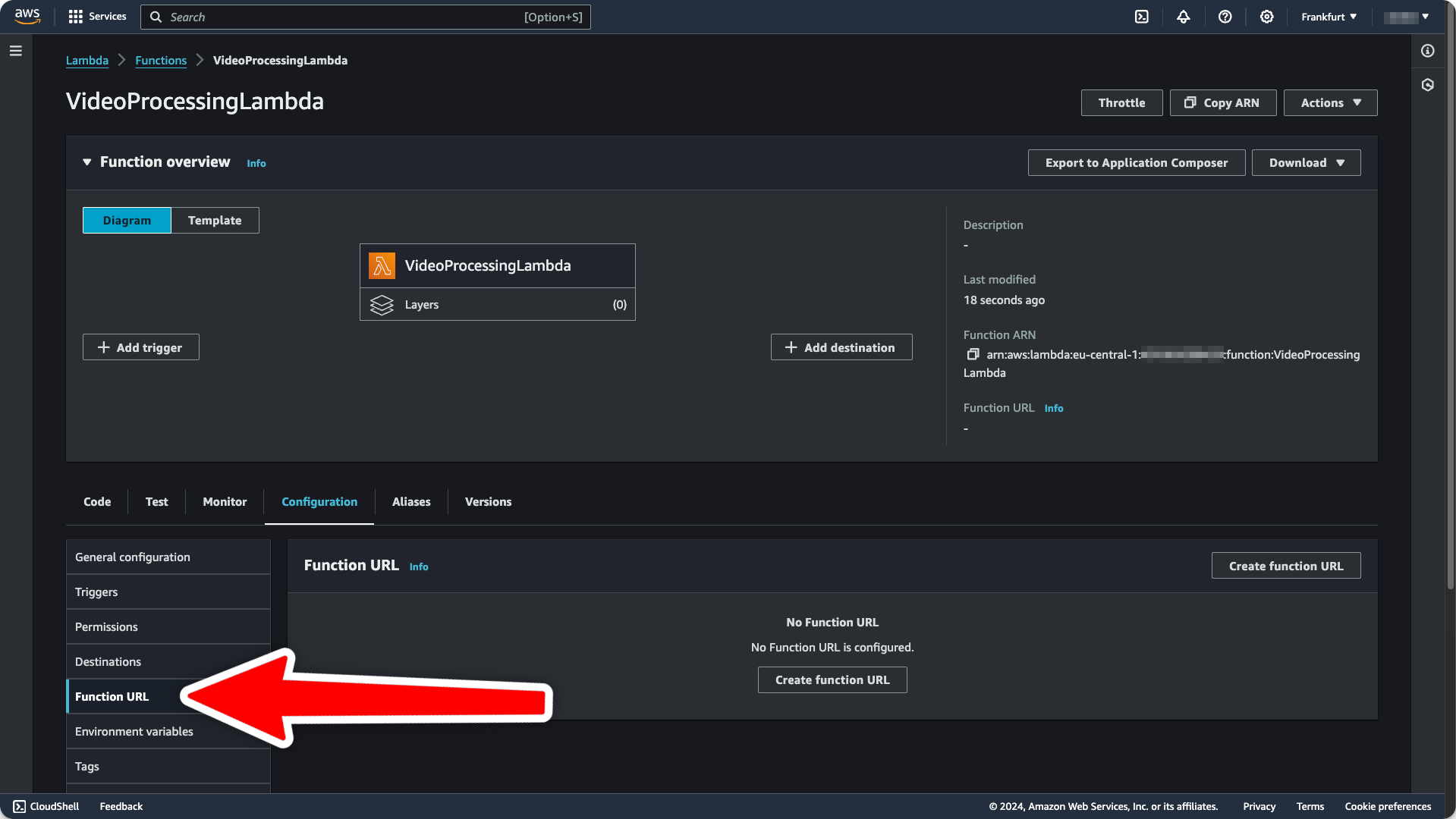

To make this Lambda available under a public URL, navigate to the Configuration tab and click Function URL:

In the following dialog, you’ll be asked to select one of two authentication types. Select NONE, because we are handling authentication ourselves. Then, click Save.

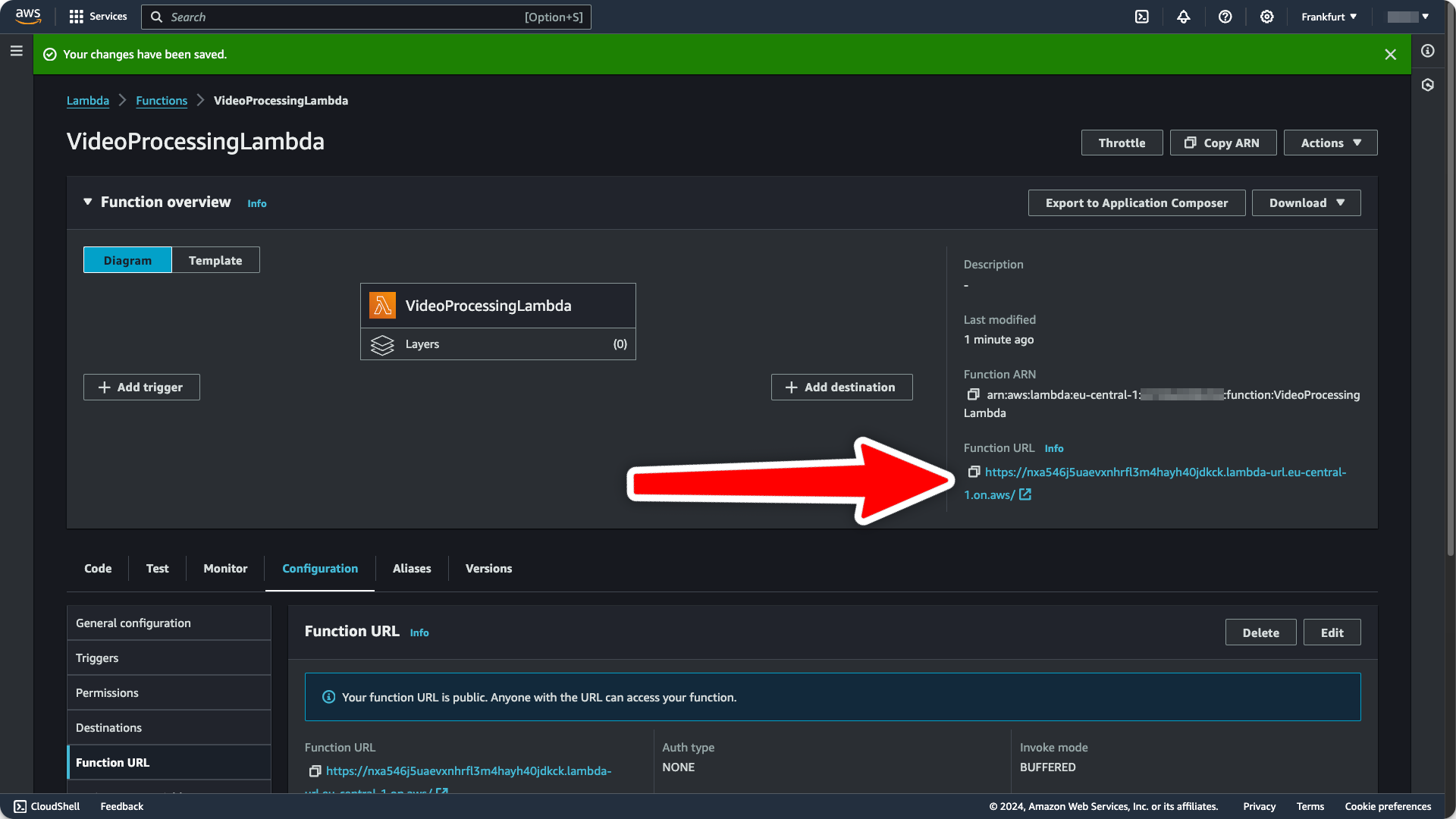

You’ll see the function URL on the right side of your function overview:

Get your current and next signing key from the Upstash Console.

Still under the Configuration tab, set the QSTASH_CURRENT_SIGNING_KEY and QSTASH_NEXT_SIGNING_KEY environment variables:

Add the following script to your package.json file to build and zip your code:

package.json

{
  "scripts": {
    "build": "rm -rf ./dist; esbuild index.ts --bundle --minify --sourcemap --platform=node --target=es2020 --outfile=dist/index.js && cd dist && zip -r index.zip index.js*"
  }
}

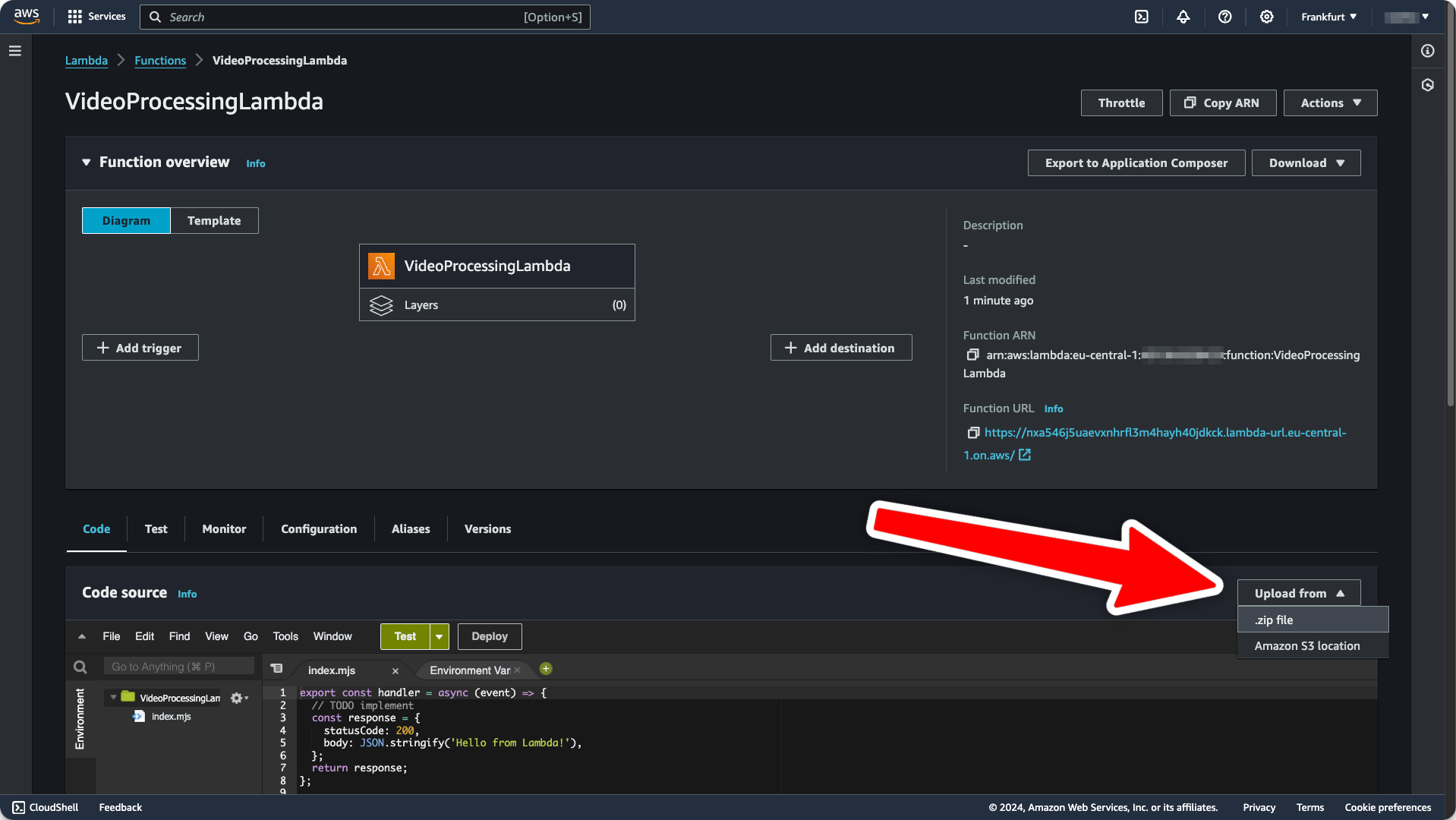

Click the Upload from button for your Lambda and deploy the code to AWS. Select ./dist/index.zip as the upload file.

Tada, you’ve manually deployed a zip file to AWS Lambda! 🎉

Testing the Integration

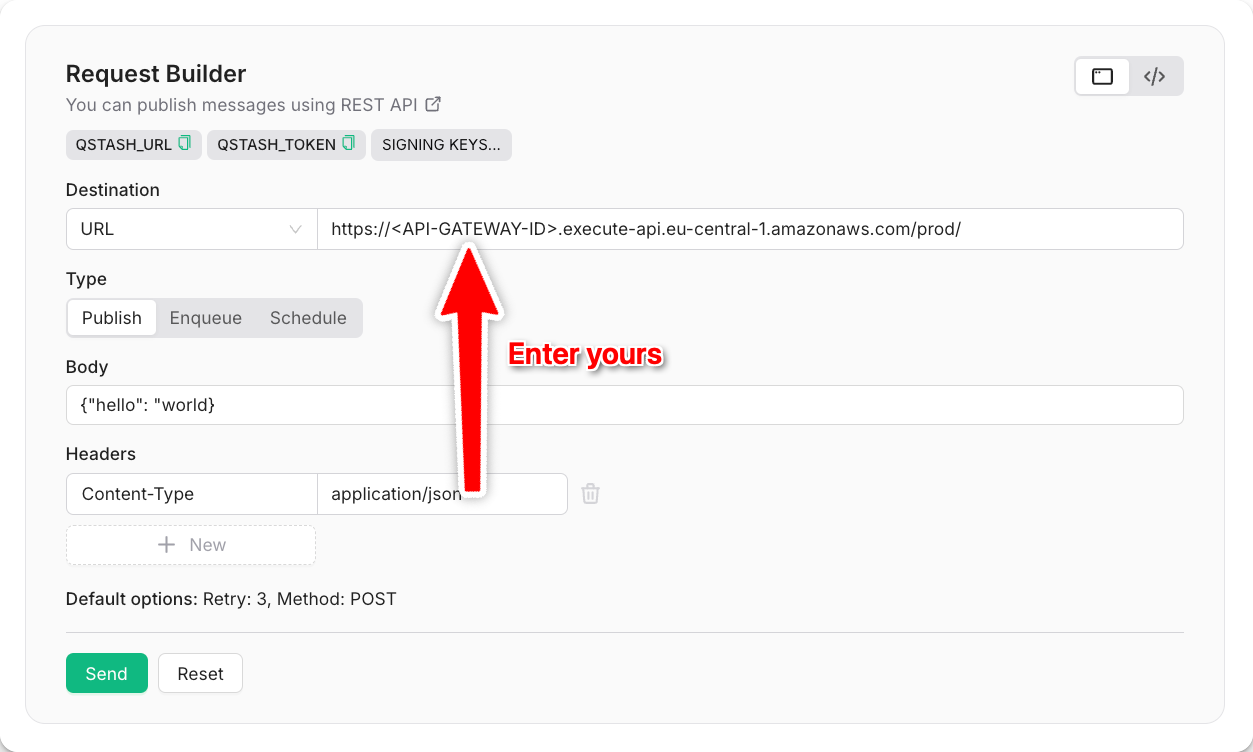

To make sure everything works as expected, navigate to your QStash request builder and send a request to your freshly deployed Lambda function:

Alternatively, you can also send a request via CURL:

Terminal

curl --request POST "https://qstash.upstash.io/v2/publish/<YOUR-LAMBDA-URL>" \
-H "Authorization: Bearer <QSTASH_TOKEN>" \
-H "Content-Type: application/json" \
-d "{ \"hello\": \"world\"}"
